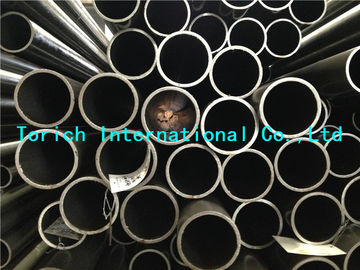

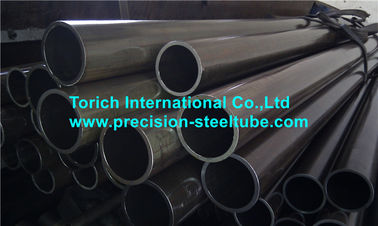

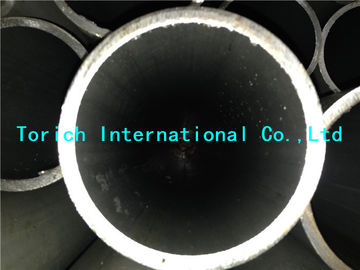

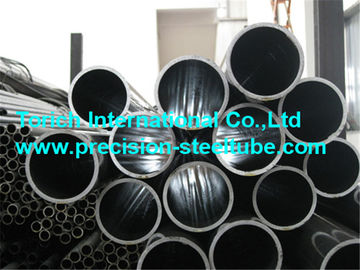

Hydraulische Präzisions-Stahlrohr ASTM A519 1010 1020 +SRA +N für Maschinenbau
Produktdetails
Präzisionsstahlrohr
,nahtloses Rohr der Präzision
2Stahlgehalt: SAE1010, SAE1020, SAE1026, SAE4130, SAE4140
Qualität und chemische Zusammensetzung (%) fürRohre aus legiertem Stahl, Präzisionsrohre aus nahtlosem Stahl
| Zulassung | C | In | P≤ | S≤ | - Ja. | Zl | - Das ist Mo. |
| 1008 | ≤ 010 | 0.30 zu 0.50 | 0.040 | 0.050 | - | - | - |
| 1010 | 0.08-0.13 | 0.30 zu 0.60 | 0.040 | 0.050 | - | - | - |
| 1018 | 0.15 zu 0.20 | 0.60 zu 0.90 | 0.040 | 0.050 | - | - | - |
| 1020 | 0.18-0.23 | 0.30 zu 0.60 | 0.040 | 0.050 | - | - | - |
| 1025 | 0.22-0.28 | 0.30 zu 0.60 | 0.040 | 0.050 | - | - | - |
| 1026 | 0.22-0.28 | 0.60 zu 0.90 | 0.040 | 0.050 | - | - | - |
| 4130 | 0.28-0.33 | 0.40 zu 0.60 | 0.040 | 0.040 | 0.15 zu 0.35 | 0.80-1.10 | 0.15 zu 0.25 |
| 4140 | 0.38-0.43 | 0.75 bis 1.00 | 0.040 | 0.040 | 0.15 zu 0.35 | 0.80-1.10 | 0.15 zu 0.25 |
Mechanische Eigenschaften fürStahlrohr mit Präzisionskaltzug
| Zulassung | Die Situation | Zugpunkt (Mpa) | Ertragspunkt (Mpa) | Verlängerung |
| 1020 | CW | ≥ 414 | ≥ 483 | ≥ 5% |
|
| SR | ≥ 345 | ≥ 448 | ≥ 10% |
|
| Eine | ≥ 193 | ≥ 331 | ≥ 30% |
|
| N | ≥ 234 | ≥ 379 | ≥ 22% |
| 1025 | CW | ≥ 448 | ≥ 517 | ≥ 5% |
|
| SR | ≥ 379 | ≥ 483 | ≥ 8% |
|
| Eine | ≥ 207 | ≥ 365 | ≥ 25% |
|
| N | ≥ 248 | ≥ 379 | ≥ 22% |
| 4130 | SR | ≥ 586 | ≥ 724 | ≥ 10% |
|
| Eine | ≥ 379 | ≥ 517 | ≥ 30% |
|
| N | ≥ 414 | ≥ 621 | ≥ 20% |
| 4140 | SR | ≥ 689 | ≥ 855 | ≥ 10% |
|
| Eine | ≥ 414 | ≥ 552 | ≥ 25% |
|
| N | ≥ 621 | ≥ 855 | ≥ 20% |
Schneiden auf Verpackung in kurzen Stück:
-
Autoteile ASTM A513 geschweißte Stahlrohre mit DOM-Produktion kaltwalzend
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other ... -
25mm Durchmesser-helles Ausglühen-nahtloser Stahl-Rohr für Hydrauliksysteme
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel ... -
Präzisions-nahtloses schwarzes phosphatierendes Stahlrohr für Hydrauliksysteme
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosph... -
Präzisions-nahtlose galvanisierte Stahlrohre DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright ...
