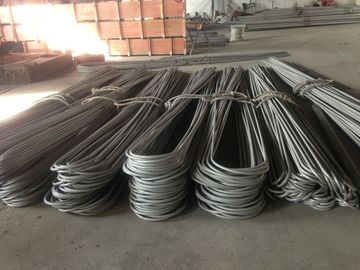

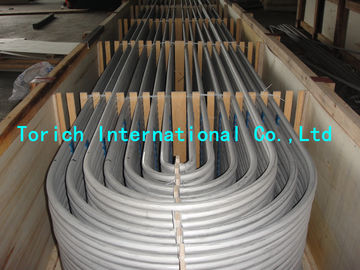

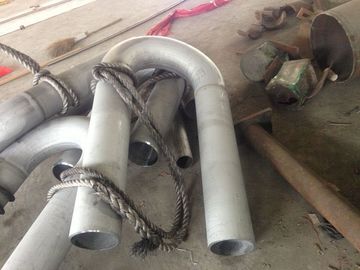

Heißes/kaltes fertiges Umkehrbogen-Rohr, verbiegendes Rohr JIS G 3463 Edelstahl-316
Produktdetails
Biegungsstahlschläuche
,verbiegendes Stahlrohr
JIS G 3463 Austenitischer Edelstahl für Rohre für Kessel und Wärmetauscher
Rohre aus Stahl ohne Nähte für Druckzwecke
Anwendung:für Kessel- und Wärmetauscherrohre
Abmessungen: 5-420 mm * 0,5-50 mm
Lieferbedingungen: Warm fertig, kalt fertig
Stahlgehalt: 304 316 317 347
Härte: HRB 90max
| STAHLKlasse und chemische Zusammensetzung | ||||||||||
| Beschichtungsklasse | Klasse | C | - Ja. | In | P | S | Ni | Zl | - Das ist Mo. | usw. |
| SUS 304TB | Austenit | 0.08 max. | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS 304HTB | 0.04-0.10 | 0.75 max. | 2.00max | 0.040 max. | 0.030 max. | 8.00-11.00 | 18.00-20.00 | - | - | |
| SUS 304LTB | 0.030 max. | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 9.00-13.00 | 18.00-20.00 | - | - | |
| SUS310TB | 0.15 max. | 1.50 max. | 2.00max | 0.040 max. | 0.030 max. | 19.00-22.00 | 24.00-26.00 | - | - | |
| SUS310STB | 0.08 max. | 1.50 max. | 2.00max | 0.040 max. | 0.030 max. | 19.00-22.00 | 24.00-26.00 | - |
| |
| SUS 316 TB | 0.08 max. | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
| SUS 316HTB | 0.40 zu 0.10 | 0.75 max. | 2.00max | 0.030 max. | 0.030 max. | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
| SUS316LTB | 0.030 max. | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - | |
| SUS316TiTB | 0.080max | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti:5*C %max | |
| SUS317TB | 0.080max | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
| SUS317LTB | 0.030 max. | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
| SUS347TB | 0.080max | 1.00max | 2.00max | 0.040 max. | 0.030 max. | 9.00-13.00 | 17.00-19.00 | - | Nb:10*C %max | |
| SUS347HTB | 0.40 zu 0.10 | 1.00max | 2.00max | 0.030 max. | 0.030 max. | 9.00-13.00 | 17.00-20.00 | - | Nb:8*C %-1.00 | |
| GASTE und mechanische Eigenschaften | |||||
| Beschichtungsklasse | Züge und Züge | Beweisstränge | Ausdehnung in % | ||
| Überdosis<10 mm | OD≥10 mm OD<20 mm | OD ≥ 20 mm | |||
| Nr. 11 Prüfstück | Nr. 11 Prüfstück | Nr. 11 Prüfstück | |||
| SUS 304TB | 520 | 205 | 27 | 30 | 35 |
| SUS 304HTB | 520 | 205 | 27 | 30 | 35 |
| SUS 304LTB | 480 | 175 | 27 | 30 | 35 |
| SUS310TB | 520 | 205 | 27 | 30 | 35 |
| SUS310STB | 520 | 205 | 27 | 30 | 35 |
| SUS 316 TB | 520 | 205 | 27 | 30 | 35 |
| SUS 316HTB | 520 | 205 | 27 | 30 | 35 |
| SUS316LTB | 480 | 175 | 27 | 30 | 35 |
| SUS316TiTB | 520 | 205 | 27 | 30 | 35 |
| SUS317TB | 520 | 205 | 27 | 30 | 35 |
| SUS317LTB | 480 | 175 | 27 | 30 | 35 |
| SUS347TB | 520 | 205 | 27 | 30 | 35 |
| SUS347HTB | 520 | 205 | 27 | 30 | 35 |
-
